Super Blower

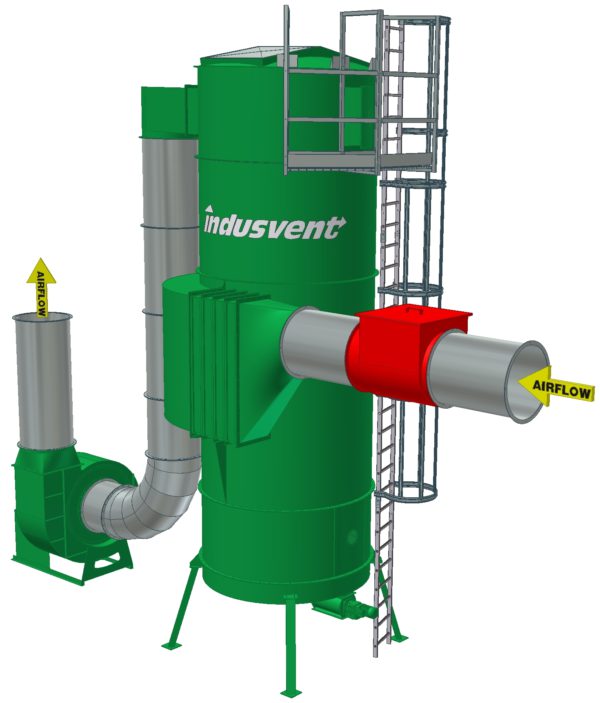

SB90 Super Blower Filter System >45,000m3/Hour

The  Super‐Blower  Filter  system  is  proven  to  provide  reliable  operating  performance,  explosion  safety, maximum  energy  efficiency,  24  hour  operation  and  is  capable of handling all dust types.

Many  companies  who  have  installed  a  Super‐Blower  system  have  continued  to  replace  all  their  existing extraction  with  Super‐Blowers  to  maximise  operating  savings  and  improve  on  their  production  capacity  and efficiencies.

The  system  compliments  businesses  who  consider  investment in the latest and most up to date technology to be part of their strategy.

Standard  Siemens  touch  screen  control  panel  with  energy saving variable speed drives.

PowerPulse® filter media cleaning system ensures stable operation.  The  material  discharge  is  via  a  rotary  valve  airlock and can be arranged to inject into road transport containers,  gravity  feed  into  2m3  sealed  bags  or  conveyed  either  mechanically  or  pneumatically  into  a Silo/Biomass facility.

Key features include:

  • ATEX Certification
  • Low energy
  • Low noise
  • No fan wear
  • Compact design
  • Low cost of ownership

SBF Super Blower Filter System above 45,000m3/Hour

For Applications above 45,000m³/h the Super-Blower is a market leading, highly efficient filtration system designed for24 Hour continuous operation and suitable for handling various dust types and materials. The Super-Blower filter is fully ATEX certified and conforms to EC regulations with the use of VFV Explosion Relief.(Vertical Flameless Venting)

Explosion panels are mounted in the roof venting an explosion vertically. At the initial design concept, safety was of paramount importance. It is the only system on the market place whereby you can safely stand on a flat surface inside all compartments of the filter body to undertake any maintenance work, there is also an ATEX Certified internal lighting system as standard.

Filter bags are easily changed without dust exposure. The PLC control panel logs all faults and displays when service is due. To meet with the requirements of a modern production facility, the Super-Blower filter is equipped with a unique filter cleaning system PowerPulse®. This allows stable condition of the filter media and enables the system to operate for continuous periods

The design of the Super-Blower main exhaust fan set reduces the electrical energy consumption by approximately 30%when compared with a traditional modular system. The variable speed drive reduces this by a further 20%. = 50% Electrical Energy Savings.

Key features include:

  • ATEX Certification
  • Low energy
  • Low noise
  • No fan wear
  • Compact design
  • Low cost of ownership
