Super Blower SB90 Installation

Client: Lidr Contract Furniture
Location: Campbell Road, Stoke on Trent, Staffordshire
Installed by: Indusvent
System: Super blower filter SB90 extraction system with chain conveyor for biomass Silo

Project Overview

A lead UK manufacturer of bespoke, high quality furniture for large hotels, boutique hotels, restaurants, conference centres, and student accommodation partnered with Indusvent for the design and installation of a high-efficiency Super Blower SB90 dust extraction system.
The installation was developed to support continuous high-volume production while improving energy efficiency, operational reliability, and workplace safety.

The customer required a robust extraction solution capable of operating across multi-shift production schedules with minimal downtime and low maintenance requirements. The SB90 system was selected due to its proven performance in demanding woodworking and industrial processing environments.

The Solution

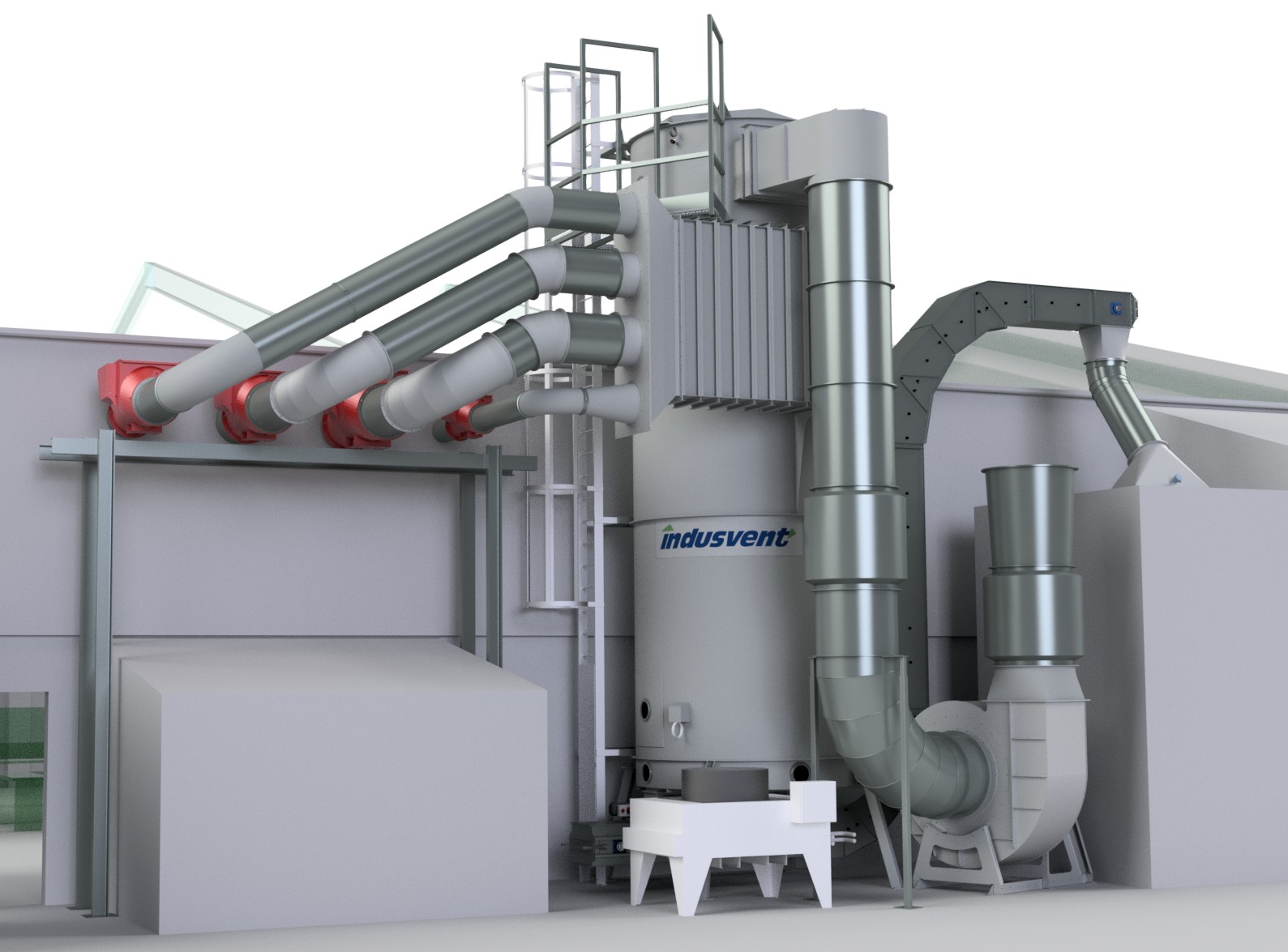

Indusvent supplied and installed a Super Blower SB90 filtration system incorporating advanced dust separation and energy-saving technology. The installation included:
·        SB90 high-efficiency filter unit
·        Variable-speed extraction fan system
·        Tangential inlet design for improved material separation
·        PowerPulse® automatic filter cleaning technology
·        Rotary valve discharge system
·        Automatic Chian conveyor for biomass
·        Remote monitoring capability
·        ATEX-certified explosion protection and Vertical Flameless Venting (VFV)

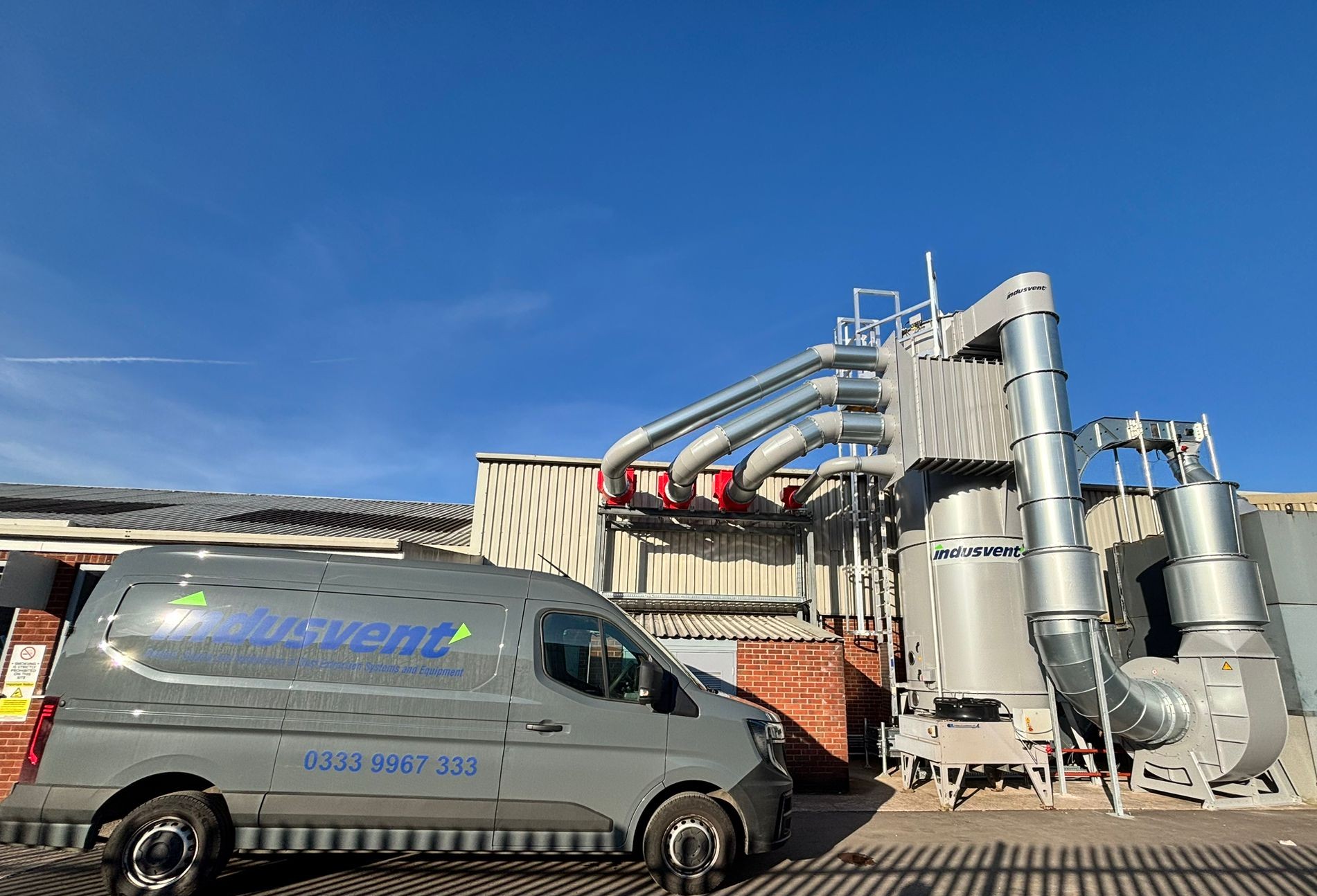

The system was pre-assembled off-site and craned into position during a planned shutdown week to minimise operational interruption.

Results and Benefits

Following commissioning, the customer achieved:
·        Improved dust capture efficiency
·        Cleaner working environments
·        Lower operating and maintenance costs
·        Reliable multi-shift production support
·        Reduced unplanned downtime
·        Enhanced workplace safety
·        Lower energy consumption
The successful implementation reinforced the customer’s long-term investment strategy in high-efficiency extraction technology, with several organisations continuing to standardise future installations around the Super Blower platform.

Conclusion

The Super Blower SB90 installation demonstrates how advanced dust extraction technology can improve operational performance, energy efficiency, and safety within high-demand manufacturing environments. By combining intelligent airflow management, high-efficiency filtration, and ATEX-certified protection systems, the SB90 provides a long-term, low-maintenance solution for modern industrial facilities
